Classic Range // Awning Window

Introduction

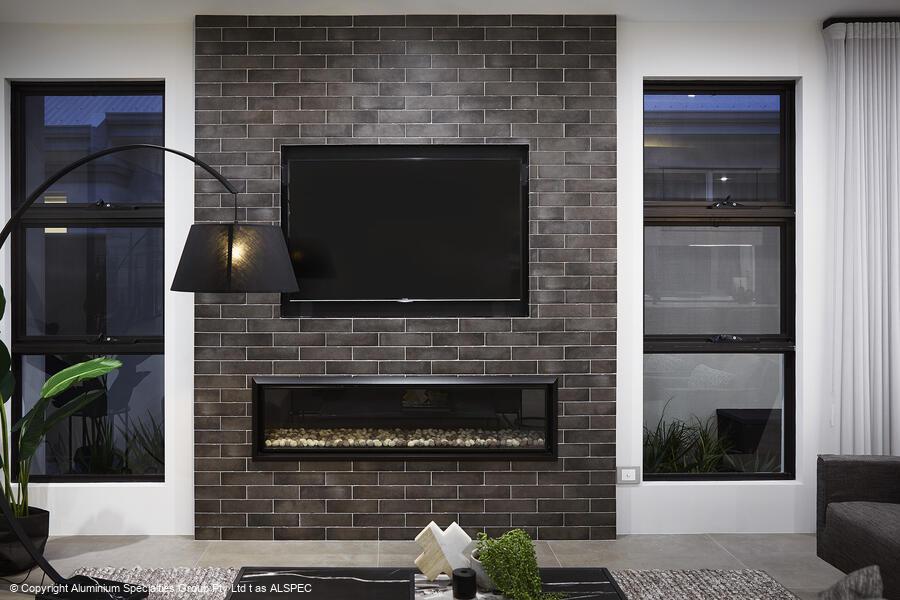

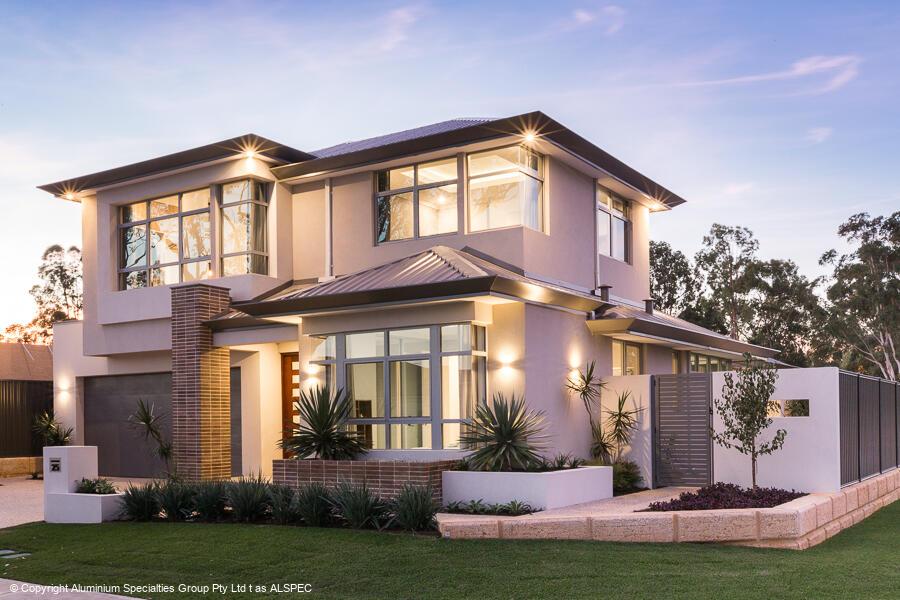

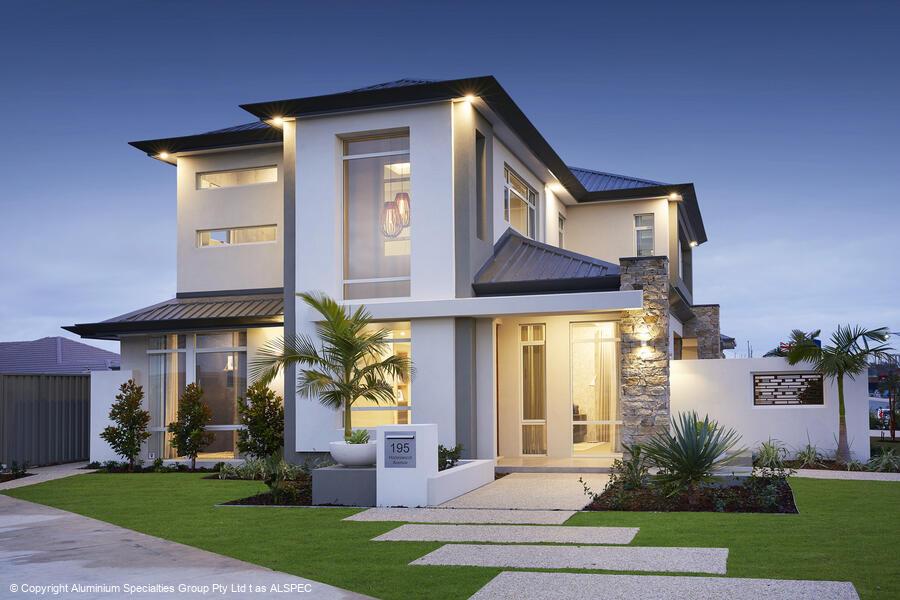

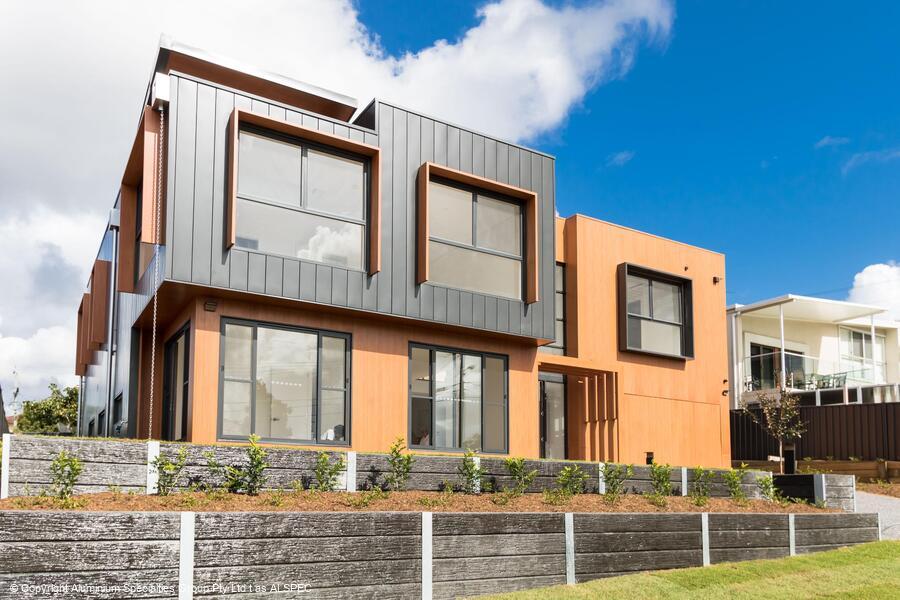

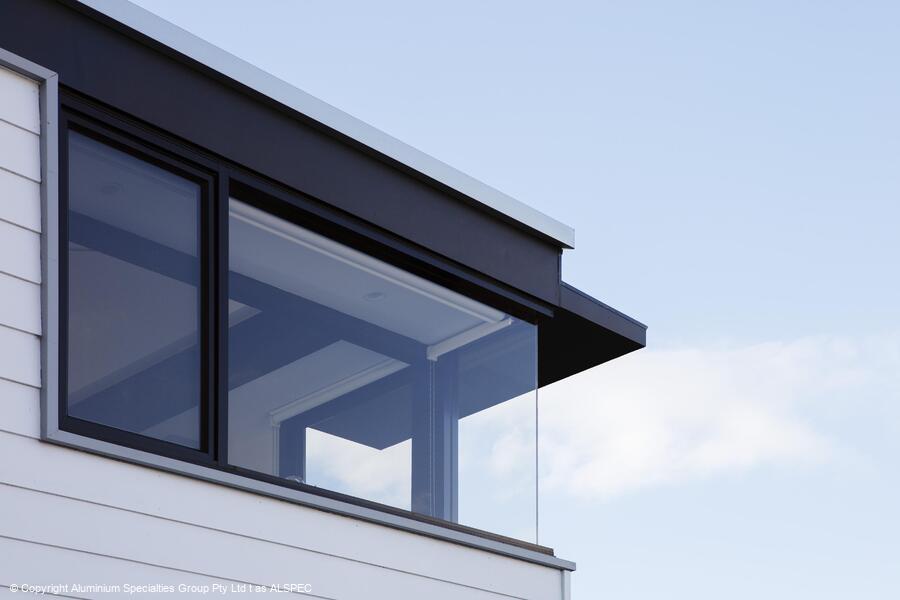

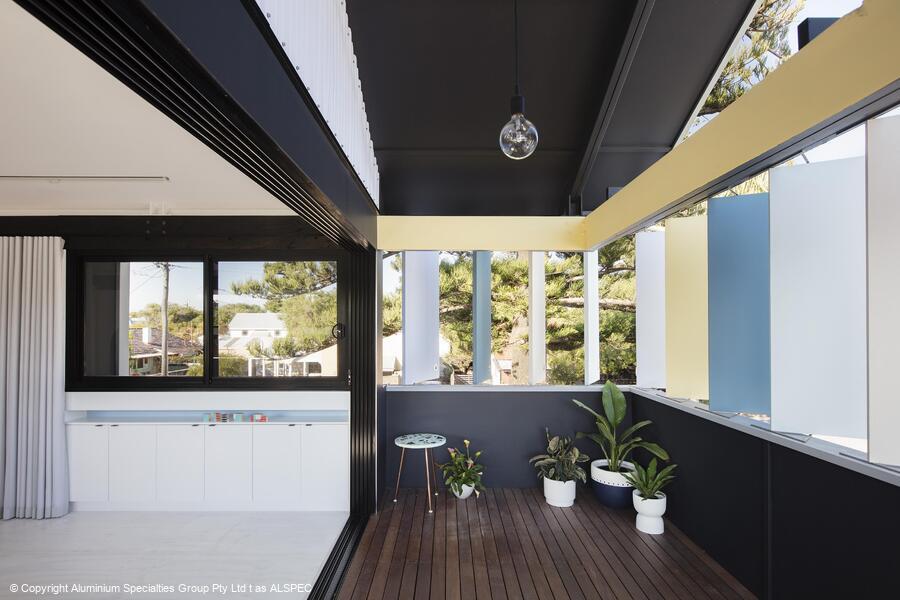

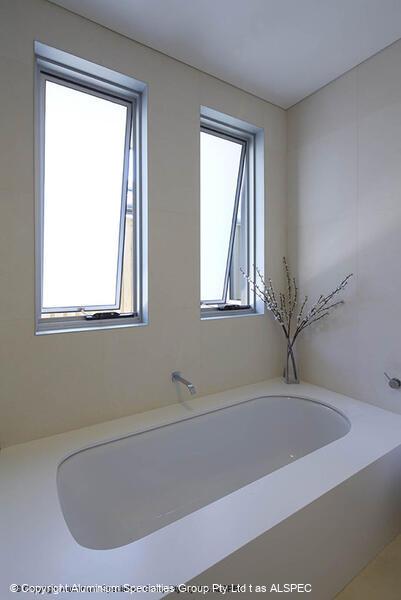

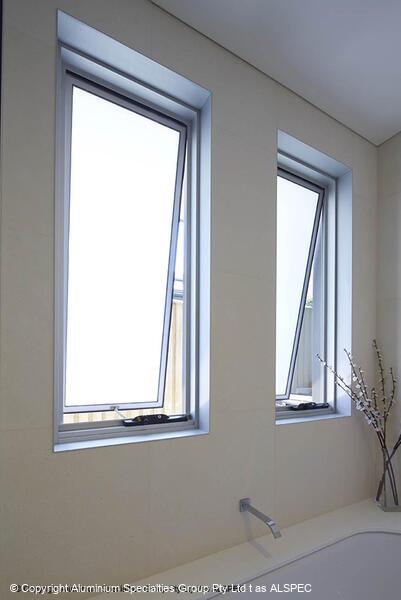

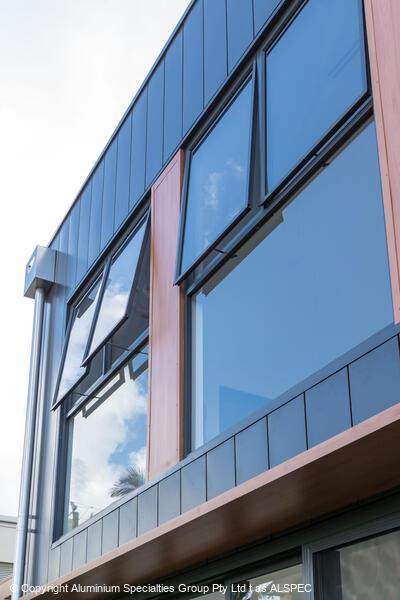

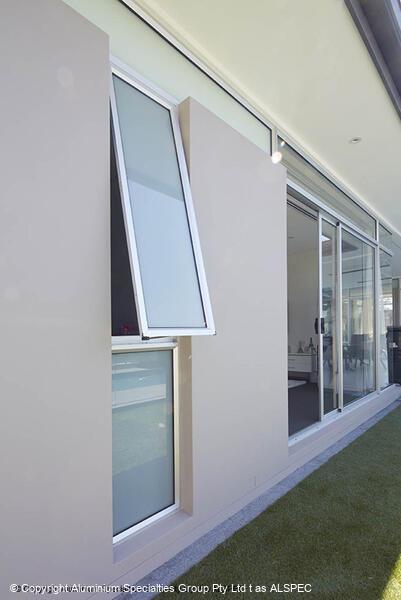

The Carinya Classic Awning Window is a mainstay range featuring two frame widths and multiple sash options.

Besides a modern designer look, the Carinya Classic Awning Window is packed with a multitude of performance features, many of which are simply not available in competing products:

  • A designer bevelled edge frame is standard for Carinya awning and casement windows and a wide sash for high-end residential applications is also available.
  • The integrated hinge design is incorporated entirely within the frame to achieve the clean designer finish.
  • Flexibility is another hallmark of all Carinya windows. There’s a choice of slim line 50mm or premium 92mm frame options.
The entire Carinya Collection has been fully tested to meet or exceed Australian Standards AS2047, AS1170, AS1191 and AS3959.

Hardware

The Carinya Classic Awning Window has been designed with matching stylish hardware, with the option for a lockable or non-lockable proprietary handle.

The integrated 50mm sill allows for a stable base for your winder, allowing concealed fixings and comes complete with stylish endcaps.

The Carinya chainwinder is available in standard or restricted length, depending on the size and application of the sash. These winders have been tried and proven in commercial applications, such as schools and offices.

All Carinya sashes feature a commercially based aluminium corner stake, combined with screw fixings, allowing an extremely strong and durable sash.

Small features such as the corner protectors separate Carinya from other awnings on the market, whilst providing a practical and safe solution for your home.

Classic Awning Window Hardware Classic Awning Window Hardware

Carinya Master Key

Carinya Master Key

Our Carinya Dealers are pleased to offer a solution for multiple keys for your doors and windows.

It is possible to have 1 key for your front door, french door, bi-fold door, sliding window, awning winder and security screen door. With Carinya's Master Key there's less keys... and less fuss!

Screening

Carinya is created by Alspec - Australia’s No.1 aluminium system supplier and we also offer an extensive range of window screening and home improvement products for your home. In addition to standard fibreglass and aluminium insect screening, your Carinya Dealer can also offer the latest technology in high visibility screening using BetterVue® and UltraVue® screening to maximise your view.

Specifications

  • Maximum Sash Height: 2100mm
  • Maximum Sash Width: 2100mm
  • Maximum Glass Thickness: 10.5mm or 18mm IGU
  • Maximum Sash Weight: 40kg
  • Maximum Sash Area: 1.26m²
  • Frame width available in 50mm & 92mm

Application

  • New Residential Construction
  • Window Replacement and Renovation
  • Low-Rise Building

Options

  • Choice of a semi-commercial 60mm sash
  • Choice of a 50mm or 92mm perimeter frame.
  • Awning frame creates all fixed frame and interacts with couplers.
  • Choice of screening options BetterVue® and UltraVue® for superior mesh solutions.


Configurations

Your Carinya Dealer can offer the typical standard configurations below, as well as custom options to suit your requirements.

Awning Window Configurations Awning Window Configurations Awning Window Configurations

Colour Options

Depending on the look require, you have many colour options for your Carinya Windows and Doors. Your Carinya Dealer can help you through this process of selecting a prefect match to your project.

Carinya Windows and Doors can be finished by one of two options for aluminium:

Powder Coating

  • A tough and durable option allowing for a wide range of colours.
  • A choice or world leading suppliers of powder finishes;
  • Finishing is provided by supplier accredited Alspec branches, as well as selected quality contractors.
  • Warranties are available. Depending on your finish option, you will receive a warranty ranging from 7 years (film and colour integrity) to 15 years (film and colour integrity).

Anodising

You may prefer a choice of anodizing, an electro-chemical treatment available in standard finishes, natural anodized and non standard, bronze and black.

Colour Visualiser

Unsure which colour or finish to choose for your new Carinya product? Why not use our handy Colour Selector Tool to take the guesswork out of the process. Simply click on any of the colours or finishes you are considering to preview the results.

Colour: Monument Grey
Monument Grey
Pearl White
Paperbark Matt
Dune Satin
Primrose
Pottery
Satin Black
Stone Beige
Ultra Silver
Deep Ocean
Clear Anodised
Magnolia
Bronze Anodised
White Birch
Surfmist Matt
Notre Dame
Woodland Grey
Jasper
Paperbark
Western Red Cedar

Colour disclaimer: Actual product colours may vary from colours shown on your monitor. Colours can be verified by ordering a sample from our representative.

Energy Efficiency

Now you can install green, green glass at home - with designer style!

The Carinya Collection of aluminium framed windows and doors has been specifically designed to be environmentally friendly, reflecting Carinya's commercial market heritage, where thermal and acoustic performance are often critical.

Of all building materials including glass, timber and masonry only one material is 100% recyclable - Aluminium.

Windows and doors are vital to the energy efficiency of any home. Research by the Sustainable Windows Alliance of Australia shows the typical Australian home can achieve an increase of 2 to 2.5 stars energy efficiency simply by upgrading the windows.
Carinya Windows and Doors

Unlike many aluminium windows, Carinya has been designed for all major forms of eco-friendly glazing options without any alteration to the frame or any unsightly add-ons.

Carinya frames are designed for eco-friendly Low E glass, high thermal and high acoustic performance 10.5mm glazing. To maximise the energy efficiency of your glazing discuss your project with a specialist Carinya Dealer and/or your architect or designer.

Remember the three most important issues for achieving maximum energy efficiency in a home are:

  • Orientation - always try and have living areas facing north with seasonal shading.
  • Insulation.
  • Window quality and performance.


WERS Energy Ratings

The Housing Industry Association of Australia (HIA) strongly suggests you ensure the energy rating on your windows is WERS rated to be confident of its true performance. Carinya gives you that confidence as the entire Carinya Collection has been WERS rated for performance.

WERS

WERS stands for the Window Energy Rating Scheme that is managed by the Australian Window Association. WERS enables windows to be rated and labelled for their annual energy impact on a whole house, in any climate of Australia. WERS acts as a fair, rigorous and credible system for testing energy performance claims. It is about certified performance.

Energy rating for windows is here to stay as part of the federal government’s commitment to improving energy efficiency and reducing greenhouse gas emissions.

The flexible glazing options available in The Carinya Collection means that our windows and doors compare favourably in WERS performance and the resale value and comfort of your home are improved by the use of the high performance Carinya windows and doors.

View the WERS RATING results here »
