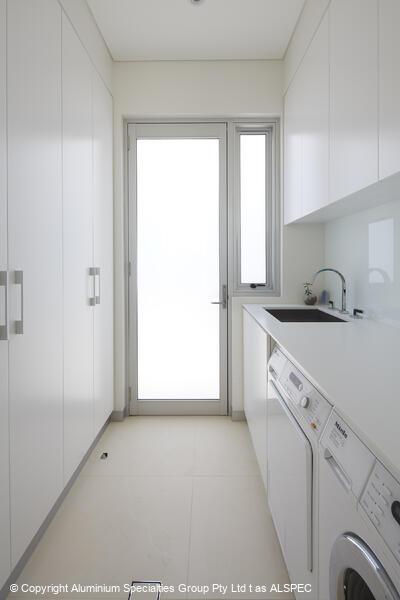

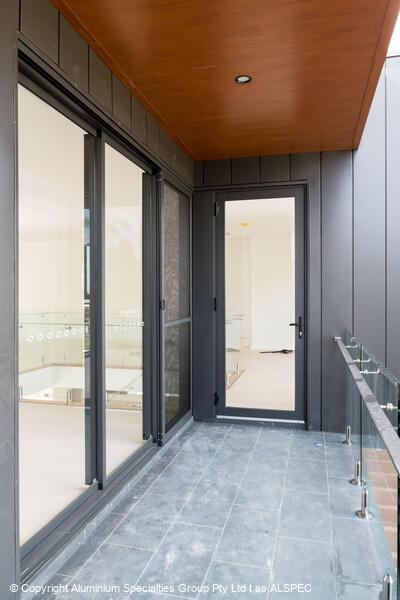

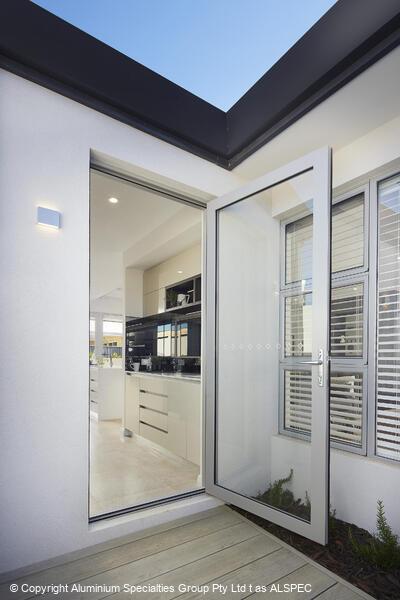

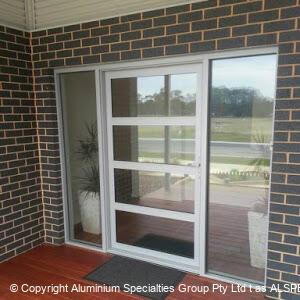

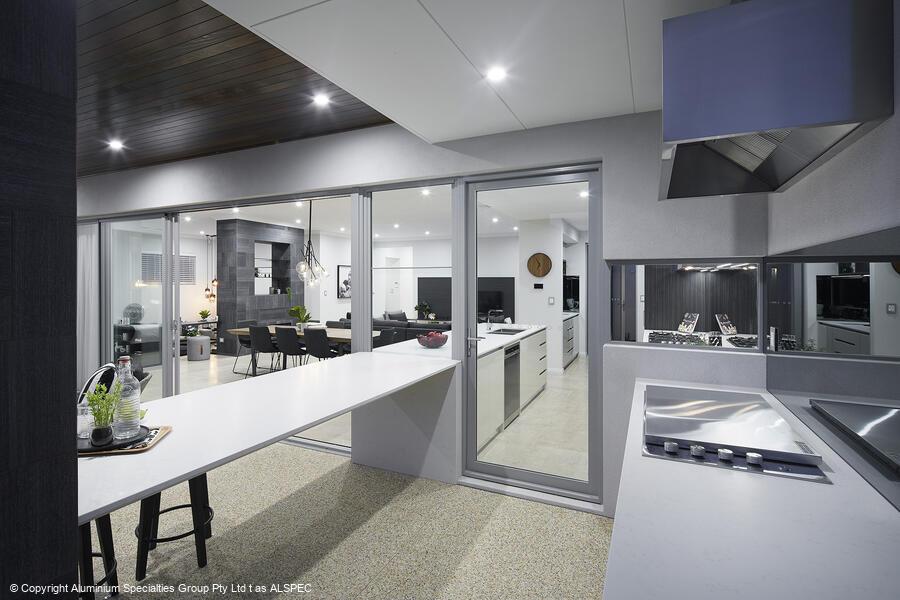

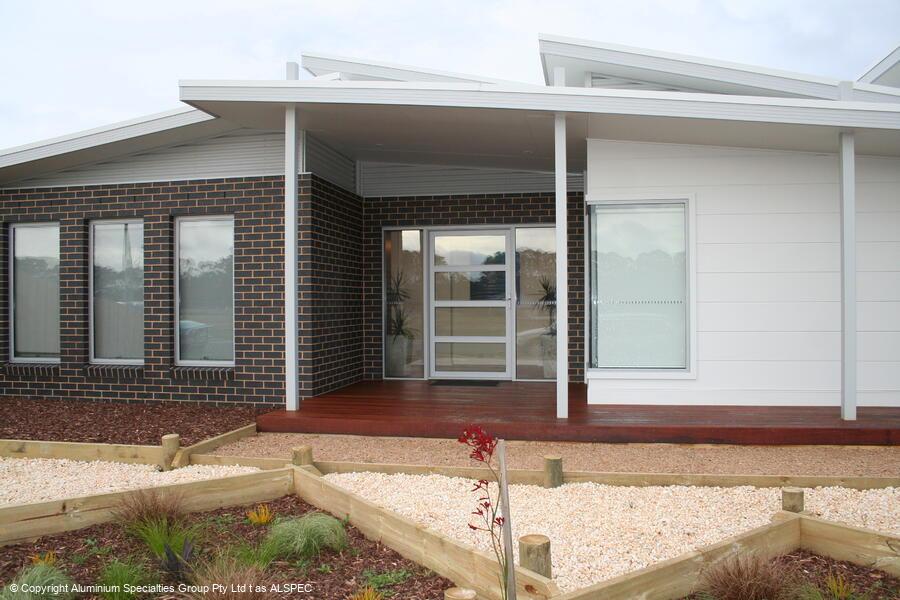

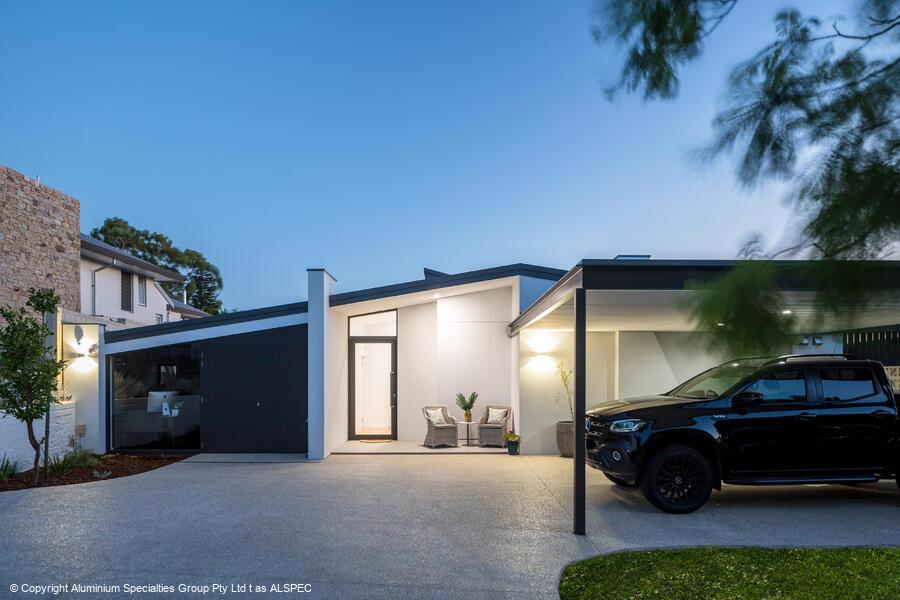

The Carinya Select Hinged Door is a premium product designed for those seeking superior functionality and style as a grand entry to their home.

Consisting of a modern designer look, the Carinya Hinged Door extrusions are a consistent 85mm wide face on both the stiles and rails, combined with a 40mm thick panel. This allows a balanced visual face and allows a vast array of hardware lock options. Combined with optional spigots, these door panels are superior in strength and performance.

  • A generous 125mm frame allowing for integrated screening, as well as multiple combinations of single, double or sidelights, the Select Hinged Door is the optimal choice.
  • A 92mm frame is also available for when screening is not required or for typical open out configurations. This also allows flexibility in design and budget.
  • The Carinya attention to detail includes concealed flush bolt brackets, reducing visible fixings, as well as custom extrusion design allowing for clean interaction with door hardware.
The entire Carinya Collection has been fully tested to meet or exceed Australian Standards AS2047, AS1170, AS1191 and AS3959.

Hardware

The Carinya Select Hinged Door has been designed with hardware from the start, not as an after thought. All locks and flush bolts blend seamlessly with the custom extrusion for a professional finish.

The Carinya Select Hinged Door sashes feature an optional commercial door spigot, allowing a strong and robust panel for enduring use, free of twist and movement.

Standard lock hardware options include ALSPEC's custom Australian made Killara Furniture, combined with Lockwood’s proven Optimum mortice lock. Fitting snug within the stile and allowing an extended backset, this lock removes the common issue of minimal key distance to the jamb. Other lock options include commercial locksets and furniture for a complete choice, as well as two and four point locking for single or double doors.

Custom flush bolt guides have been designed to remove visible fixings from the extrusion faces, allowing a tighter seal saving potential energy costs while giving a professional, uninterrupted clean visible surface.

Killara Xtra Furniture allows for an internal snib option with lock indicator, two or four point locking for all configurations.
Select Hinged Door Hardware Select Hinged Door Hardware

Carinya Master Key

Carinya Master Key

Our Carinya Dealers are pleased to offer a solution for multiple keys for your doors and windows.

It is possible to have 1 key for your front door, french door, bi-fold door, sliding window, awning winder and security screen door. With Carinya's Master Key there's less keys... and less fuss!

Screening

Carinya is created by Alspec - Australia’s No.1 aluminium system supplier and we also offer an extensive range of window screening and home improvement products for your home. In addition to standard fibreglass and aluminium insect screening, your Carinya Dealer can also offer the latest technology in high visibility screening using BetterVue® and UltraVue® screening to maximise your view.



Specifications

  • Maximum Panel Height: 2400mm
  • Maximum Panel Width: 1200mm
  • Maximum Glass Thickness: 10.5mm or 24mm IGU
  • Maximum Panel Weight: 50kg
  • 125mm or 92mm Frame

Application

  • New Residential Construction
  • Window Replacement and Renovation
  • Low-Rise Multi-Unit Developments
  • Aged Care and Wheelchair Requirements

Options

  • A range of sill options for internal or external opening.
  • A range of sidelite options including glass louvre options.
  • Integral screening options for security or insect protection.

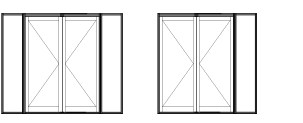

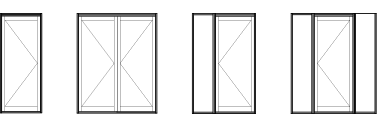

Configurations

Your Carinya Dealer can offer the typical standard configurations below, as well as custom options to suit your requirements.

Hinged Door Configurations Hinged Door Configurations Hinged Door Configurations

Colour Options

Depending on the look require, you have many colour options for your Carinya Windows and Doors. Your Carinya Dealer can help you through this process of selecting a prefect match to your project.

Carinya Windows and Doors can be finished by one of two options for aluminium:

Powder Coating

  • A tough and durable option allowing for a wide range of colours.
  • A choice or world leading suppliers of powder finishes;
  • Finishing is provided by supplier accredited Alspec branches, as well as selected quality contractors.
  • Warranties are available. Depending on your finish option, you will receive a warranty ranging from 7 years (film and colour integrity) to 15 years (film and colour integrity).

Anodising

You may prefer a choice of anodizing, an electro-chemical treatment available in standard finishes, natural anodized and non standard, bronze and black.

Colour Visualiser

Unsure which colour or finish to choose for your new Carinya product? Why not use our handy Colour Selector Tool to take the guesswork out of the process. Simply click on any of the colours or finishes you are considering to preview the results.

Colour: Monument Grey
Monument Grey
Pearl White
Paperbark Matt
Dune Satin
Primrose
Pottery
Satin Black
Stone Beige
Ultra Silver
Deep Ocean
Clear Anodised
Magnolia
Bronze Anodised
White Birch
Surfmist Matt
Notre Dame
Woodland Grey
Jasper
Paperbark
Western Red Cedar

Colour disclaimer: Actual product colours may vary from colours shown on your monitor. Colours can be verified by ordering a sample from our representative.

Energy Efficiency

Now you can install green, green glass at home - with designer style!

The Carinya Collection of aluminium framed windows and doors has been specifically designed to be environmentally friendly, reflecting Carinya's commercial market heritage, where thermal and acoustic performance are often critical.

Of all building materials including glass, timber and masonry only one material is 100% recyclable - Aluminium.

Windows and doors are vital to the energy efficiency of any home. Research by the Sustainable Windows Alliance of Australia shows the typical Australian home can achieve an increase of 2 to 2.5 stars energy efficiency simply by upgrading the windows.
Carinya Windows and Doors

Unlike many aluminium windows, Carinya has been designed for all major forms of eco-friendly glazing options without any alteration to the frame or any unsightly add-ons.

Carinya frames are designed for eco-friendly Low E glass, high thermal and high acoustic performance 10.5mm glazing. To maximise the energy efficiency of your glazing discuss your project with a specialist Carinya Dealer and/or your architect or designer.

Remember the three most important issues for achieving maximum energy efficiency in a home are:

  • Orientation - always try and have living areas facing north with seasonal shading.
  • Insulation.
  • Window quality and performance.


WERS Energy Ratings

The Housing Industry Association of Australia (HIA) strongly suggests you ensure the energy rating on your windows is WERS rated to be confident of its true performance. Carinya gives you that confidence as the entire Carinya Collection has been WERS rated for performance.

WERS

WERS stands for the Window Energy Rating Scheme that is managed by the Australian Window Association. WERS enables windows to be rated and labelled for their annual energy impact on a whole house, in any climate of Australia. WERS acts as a fair, rigorous and credible system for testing energy performance claims. It is about certified performance.

Energy rating for windows is here to stay as part of the federal government’s commitment to improving energy efficiency and reducing greenhouse gas emissions.

The flexible glazing options available in The Carinya Collection means that our windows and doors compare favourably in WERS performance and the resale value and comfort of your home are improved by the use of the high performance Carinya windows and doors.

View the WERS RATING results here »
