Classic Range // Sliding Window
Carinya has many visible advantages over alternative products in addition to its obvious aesthetic qualities, these include:
- Exclusive handle located on the mullion for ease of access and cleaner lines.
- In built weather flaps - a feature of all Carinya windows - to reduce air and water infiltration, cover drain slots and minimise insect intrusion.
- Proprietary adjustable, non-corrosive roller system - the ‘engine room’ of these high performance windows - provides an effortless gliding motion that makes the window a joy to operate.
- Anti-lift block fitted above the sash to prevent manipulation and increase security.
- Mullion and transom end caps that ensure insects have no place to hide.
The Carinya Classic Sliding Window has been designed with matching stylish hardware, with the option for a lockable or non-lockable proprietary handle.
To maximise the performance and life of your window we have utilised our proprietary commercial rollers that have been tried and proven in commercial applications such as schools and offices. This ensures that your windows will always be easy to open even with large sashes and heavier glass options.
All Carinya Sliding Window sashes feature corner blocks in all four corners of the sliding sash. These blocks make the sash more rigid, reducing twisting and movement. This reduction in movement increases the performance of the window by reducing opportunities for air and water infiltration.
An optional vent lock is also available allowing the sliding sash to be secured in a semi-opened position for partial ventilation, child safety and security.
Carinya Master Key
Our Carinya Dealers are pleased to offer a solution for multiple keys for your doors and windows.
It is possible to have 1 key for your front door, french door, bi-fold door, sliding window, awning winder and security screen door. With Carinya's Master Key there's less keys... and less fuss!
Carinya is created by Alspec - Australia’s No.1 aluminium system supplier and we also offer an extensive range of window screening and home improvement products for your home. In addition to standard fibreglass and aluminium insect screening, your Carinya Dealer can also offer the latest technology in high visibility screening using BetterVue® and UltraVue® screening to maximise your view.
- Maximum Sash Height: 1500mm
- Maximum Sash Width: 1200mm
- Maximum Glass Thickness:10.5mm or 18mm IGU
- Maximum Sash Weight: 40kg
- Frame width available in 50mm & 92mm
- New residential construction
- Window replacement and renovation
- Low-rise building
- A range of sill options are available for applications requiring increased weather performance.
- A range of mullions and transoms complete with end caps for a quality finish.
- Choice of screening options BetterVue® and UltraVue® for superior mesh solutions.
- A ventlock that allows the window to be secured in a partially opened position to allow ventilation whilst still being secure.

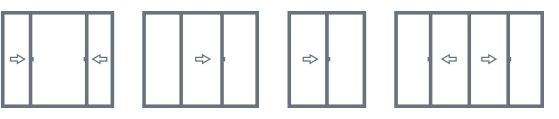

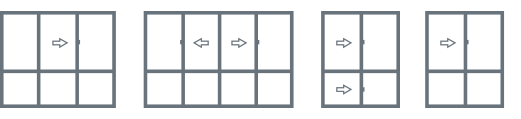

Your Carinya Dealer can offer the typical standard configurations below, as well as custom options to suit your requirements.
Depending on the look require, you have many colour options for your Carinya Windows and Doors. Your Carinya Dealer can help you through this process of selecting a prefect match to your project.
Carinya Windows and Doors can be finished by one of two options for aluminium:
- A tough and durable option allowing for a wide range of colours.
- A choice or world leading suppliers of powder finishes;
- Finishing is provided by supplier accredited Alspec branches, as well as selected quality contractors.
- Warranties are available. Depending on your finish option, you will receive a warranty ranging from 7 years (film and colour integrity) to 15 years (film and colour integrity).
You may prefer a choice of anodizing, an electro-chemical treatment available in standard finishes, natural anodized and non standard, bronze and black.
Unsure which colour or finish to choose for your new Carinya product? Why not use our handy Colour Selector Tool to take the guesswork out of the process. Simply click on any of the colours or finishes you are considering to preview the results.
Colour disclaimer: Actual product colours may vary from colours shown on your monitor. Colours can be verified by ordering a sample from our representative.
The Carinya Collection of aluminium framed windows and doors has been specifically designed to be environmentally friendly, reflecting Carinya's commercial market heritage, where thermal and acoustic performance are often critical.
Of all building materials including glass, timber and masonry only one material is 100% recyclable - Aluminium.
Unlike many aluminium windows, Carinya has been designed for all major forms of eco-friendly glazing options without any alteration to the frame or any unsightly add-ons.
Carinya frames are designed for eco-friendly Low E glass, high thermal and high acoustic performance 10.5mm glazing. To maximise the energy efficiency of your glazing discuss your project with a specialist Carinya Dealer and/or your architect or designer.
Remember the three most important issues for achieving maximum energy efficiency in a home are:
- Orientation - always try and have living areas facing north with seasonal shading.
- Window quality and performance.
WERS Energy Ratings
The Housing Industry Association of Australia (HIA) strongly suggests you ensure the energy rating on your windows is WERS rated to be confident of its true performance. Carinya gives you that confidence as the entire Carinya Collection has been WERS rated for performance.
WERS stands for the Window Energy Rating Scheme that is managed by the Australian Window Association. WERS enables windows to be rated and labelled for their annual energy impact on a whole house, in any climate of Australia. WERS acts as a fair, rigorous and credible system for testing energy performance claims. It is about certified performance.
Energy rating for windows is here to stay as part of the federal government’s commitment to improving energy efficiency and reducing greenhouse gas emissions.
The flexible glazing options available in The Carinya Collection means that our windows and doors compare favourably in WERS performance and the resale value and comfort of your home are improved by the use of the high performance Carinya windows and doors.
