Introduction

• A designer bevelled edge frame is standard for Carinya awning and casement windows, with an option of 48mm and 60mm wide sash for high-end residential applications
• The integrated hinge design is incorporated entirely within the frame to achieve a clean designer finish
• Utilises a strong ‘Double Strut’ thermal break construction for maximum strength in the sash
• Excellent Uw values 2.6 - 3.3
• Integrated screening options available
• Sash features internal and external weather seals for maximum performance
• Electric chainwinder option
• Polyamide thermal break to minimise the transfer of heat and cold
• Features Alspec Chainwinder
• The entire Carinya Collection has been fully tested to meet Australian Standard AS2047.

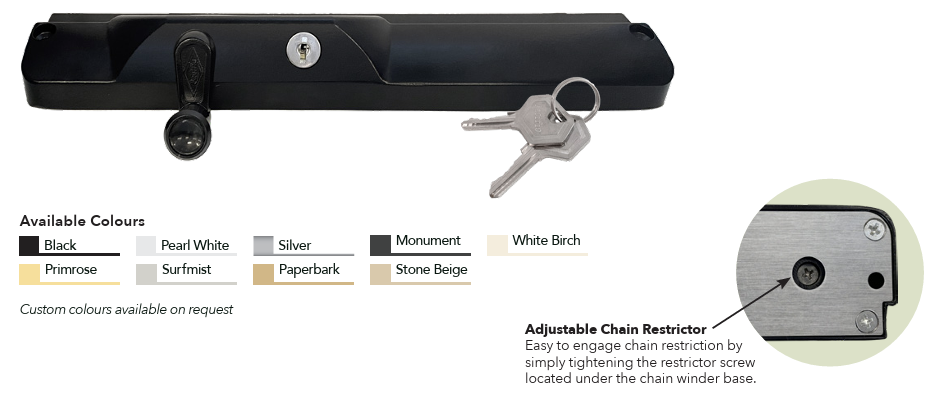

Hardware

READ MORE

Screening

Carinya is created by Alspec - Australia’s No.1 aluminium system supplier and we also offer an extensive range of window screening and home improvement products for your home. In addition to standard fibreglass and aluminium insect screening, your Carinya Dealer can also offer the latest technology in high visibility screening using BetterVue® and UltraVue® screening to maximise your view.

Insect Screening

Carinya products have been designed to accept screening products without the need for unsightly adaptors or added material. Door and window screening provides protection from insects and other unwanted 'guests' to your home, whilst minimising the impact on your view.
View more »

Invisi-Gard Stainless Steel Security Screening

Fixed window security screens are becoming more of a requirement for the conscious home owner and Invisi-Gard is your ideal match for durability, protection and performance.
View more »

KidScreen Window Fall Prevention

A unique patent design, cost effective barrier solution designed specifically for child protection of openable windows, KidScreen were recently presented with a highly commended Award from the "Australian Windows Association Most Innovative Window Component 2013".
View more »

Colour Options

Depending on the look required, you have many colour options for your Carinya Windows and Doors. Your Carinya Dealer can help you through this process of selecting a perfect match for your project.

Carinya Windows and Doors can be finished in one of two options for aluminium:

Powder Coating

• A tough and durable option allowing for a wide range of colours.
• A choice or world-leading suppliers of powder finishes;
• Finishing is provided by supplier-accredited Alspec branches, as well as selected quality contractors.
• Warranties are available. Depending on your finish option, you will receive a warranty ranging from 7 years (film and colour integrity) to 15 years (film and colour integrity).

Anodising

You may prefer a choice of anodising, an electrochemical treatment available in standard finishes, natural anodised, and non-standard finishes, including bronze and black.

Colour Visualiser

Unsure which colour or finish to choose for your new Carinya product? Why not use our handy Colour Selector Tool to take the guesswork out of the process. Simply click on any of the colours or finishes you are considering to preview the results.

Colour disclaimer: Actual product colours may vary from colours shown on your monitor. Colours can be verified by ordering a sample from our representative.

Energy Efficiency

Now you can install green, green glass at home - with designer style!

The Carinya Collection of aluminium framed windows and doors has been specifically designed to be environmentally friendly, reflecting Carinya's commercial market heritage, where thermal and acoustic performance are often critical.

Of all building materials, including glass, timber and masonry, only one material is 100% recyclable - Aluminium.

Windows and doors are vital to the energy efficiency of any home. Research by the Sustainable Windows Alliance of Australia shows the typical Australian home can achieve an increase of 2 to 2.5 stars energy efficiency simply by upgrading the windows.

Unlike many aluminium windows, Carinya has been designed for all major forms of eco-friendly glazing options without any alteration to the frame or any unsightly add-ons.

Carinya frames are designed for eco-friendly Low E glass, high thermal and high acoustic performance 10.5mm glazing. To maximise the energy efficiency of your glazing discuss your project with a specialist Carinya Dealer and/or your architect or designer.

Remember the three most important issues for achieving maximum energy efficiency in a home are:

• Orientation - always try and have living areas facing north with seasonal shading.
• Insulation.
• Window quality and performance.

WERS Energy Ratings

The Housing Industry Association of Australia (HIA) strongly suggests you ensure the energy rating on your windows is WERS rated to be confident of its true performance. Carinya gives you that confidence as the entire Carinya Collection has been WERS rated for performance.

WERS stands for the Window Energy Rating Scheme that is managed by the Australian Window Association. WERS enables windows to be rated and labelled for their annual energy impact on a whole house, in any climate of Australia. WERS acts as a fair, rigorous and credible system for testing energy performance claims. It is about certified performance.

Energy rating for windows is here to stay as part of the federal government’s commitment to improving energy efficiency and reducing greenhouse gas emissions.

The flexible glazing options available in The Carinya Collection mean that our windows and doors compare favourably in WERS performance and the resale value and comfort of your home are improved by the use of the high performance Carinya windows and doors.

View the WERS RATING results here »  ( WERS Ratings section )
